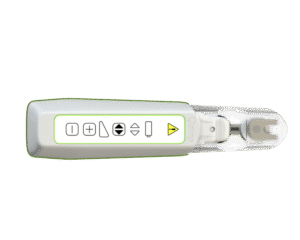

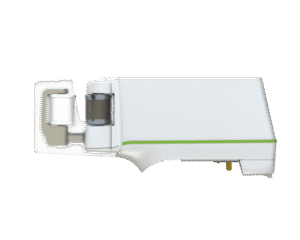

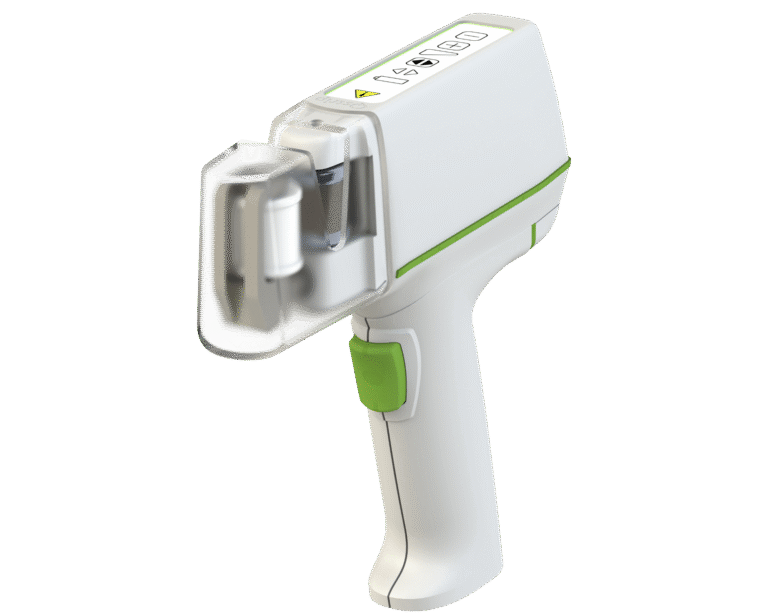

REF CS109: Tubestrip, a complete tube stripping system, which includes
Battery module, Tube Stripping module, Charging station,
Mains adapter, Plug kit and Operator’s manual.
Type of PVC tube: Different types and sizes of tubes up to 6.2 mm (0.24”)
outer diameter can be used.
Stripping speed: 5 different options
Intended Use: The Tubestrip is a fully automatic system for stripping
PVC and EVA tubes connected to blood bags included
either in Blood Packs or in Apheresis Disposable Sets.
The stripping can be performed when the donor is still
connected to the Blood Pack or the Apheresis
Disposable Set.
Input Power: Mains adapter, single charge station 100-240 V ~ -50/60 Hz
Output: Mains adapter, single charge station 12 V 28 W
Tube Stripper Complete:
Size (W x H x D): 200 x 40 x 175 mm (7.9 x 1.8 x 6.5 in)
Weight kg (Ib): 560 g (1.23 lb)
Temperature: Operating: 0 – 35°C (32 – 95°F)
Storage: -20 – 70°C (-4 – 158°F)
Humidity: Operating: 10 – 90% Rh (non condensing)
Storage: 10 – 90% Rh (non condensing)
Altitude: Operating: maximum 3000 meters (9842 feet)
In compliance with: – EN 60601-1: 2006, General Requirements
for basic safety and essential performance.
– EN 60601-1-2: 2015,
Collateral standards for Electromagnetic Compatibility.
Electrical safety: During charging Class II.
During use: Internal power supply.
The Tubestrip is used in the same environment as medical
equipment (hospitals and blood banks).
It must be used by highly qualified personnel.
