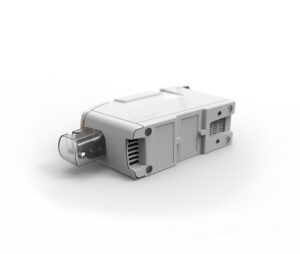

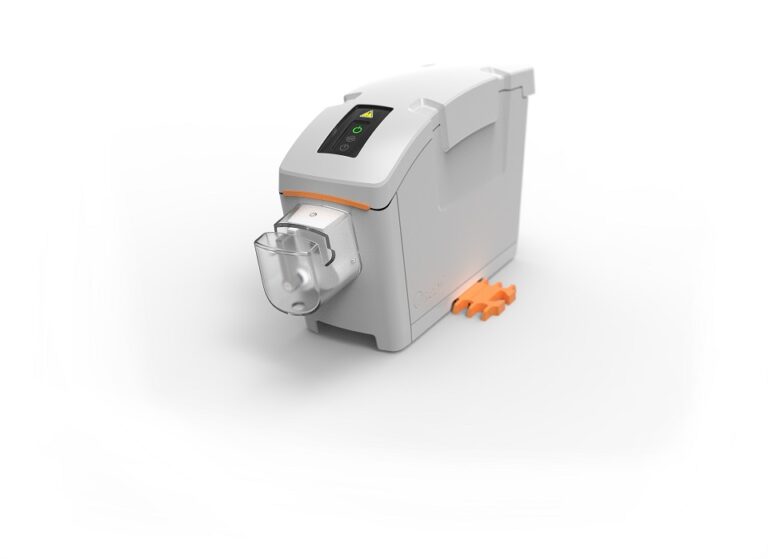

REF CS629: Qseal-multi, a complete sealing system, which includes

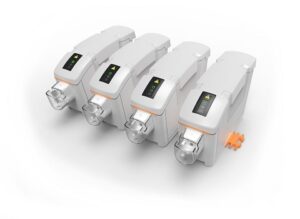

Main unit, built-in Sealing head, Rail segment and
Operator’s manual.
Type of PVC tube: Different types and sizes of tubes up to 6 mm outer
diameter can be sealed due to a sophisticated sensing
system, which automatically adapts sealing time.
Sealing capacity: Max. 1000 seals/hour with PVC tubes up to 6.2 mm
outer diameter at 20°C (68 °F)
Sealing time: 0.5 up to 3 sec. depending on tubing.
Intended Use: The Qseal-multi is a fully automatic system for sealing PVC
tubes connected to blood bags included either in
Blood Packs or in Apheresis Disposable Sets. The sealing
can be performed when the donor is still connected to
the Blood Pack or the Apheresis Disposable Set.
Input Power: 100 / 240 V ~ – 50-60 Hz
Consumption: 250 W
Power inlet: Inlet C14 according to IEC 60320.
RF Output: 80 W max. / 50 Ω / 40.680 MHz
Size (W x H x D) 70 x 140 x 275 mm (2.8 x 5.5 x 10.8 in)
Weight kg (Ib): 1.34 kg (2.95)
Temperature: Operating: 0 to 35 °C (32 – 95 °F)
Storage: – 20 up to + 70 °C (- 4 up to 158 °F)
Humidity: Operating: 10 up to 90% Rh (non condensing)
Storage: 10 up to 90% Rh (non condensing)
Altitude: Operating: maximum 3000 meters (9842 feet)
In compliance with: – EN 60601-1: 2006, General Reqirements for basic safety
and essential performance.
– EN 60601-1-2: 2014, Collateral standards for
Electromagnetic Compatibility.
Electrical safety: Class I
The Qseal-opti is used in the same environment as
medical equipment (hospitals and blood banks).
It must be used by highly qualified personnel.
