The World's Most popular Electrolyte Analyzer

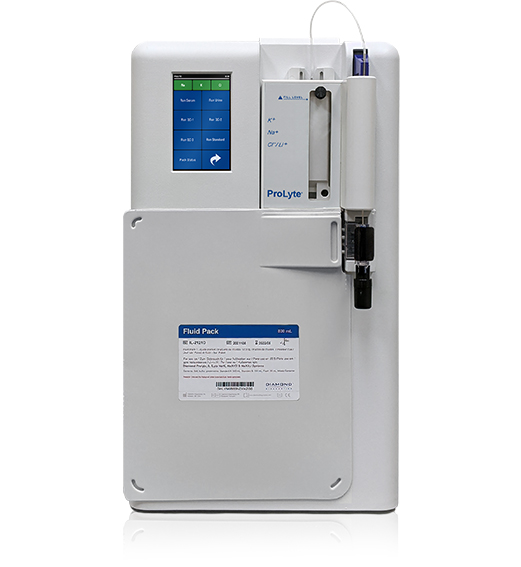

The Diamond Diagnostics ProLyte® Electrolyte Analyzer is a completely automated system measuring Na+, K+, Li+ and Cl- in whole blood, serum, plasma and urine utilizing Ion Selective Electrode (ISE) technology. The Diamond ProLyte® was uniquely designed with the user in mind. With the 4” touch screen display or USB keyboard, easily navigate menus, search patient results, run on-screen diagnostics and access data remotely.

Product features

Economical, Accurate and Easy to Maintain. Perfect for any size Lab.

Analysis Time

45 sec (240/hour)

User Input

4” Touch Screen
External Keyboard
Remote Access

Number of Parameters

Na+ K+ Cl- L+
4 Total / 3 (Simultaneously)

Languages

English, 中文, Español,
Français, Deutsch,
Indonesia, Italian, 日本語,

Calibration

2 Point every 4 hours
1 Point every sample
On Demand

Support

Online Service Interface

Data Storage

10,000+ Patient Results
20,000+ QC Results per Level

日本語, 한국어, Português,
Polskie, Русский, Türkçe

Connectivity

LAN, Wifi, 4 USB ports, RS232, LIS

Sample Size

Whole Blood, Serum (100 µl)
Plasma, QCs (100 µl)
Urine (350 µl)

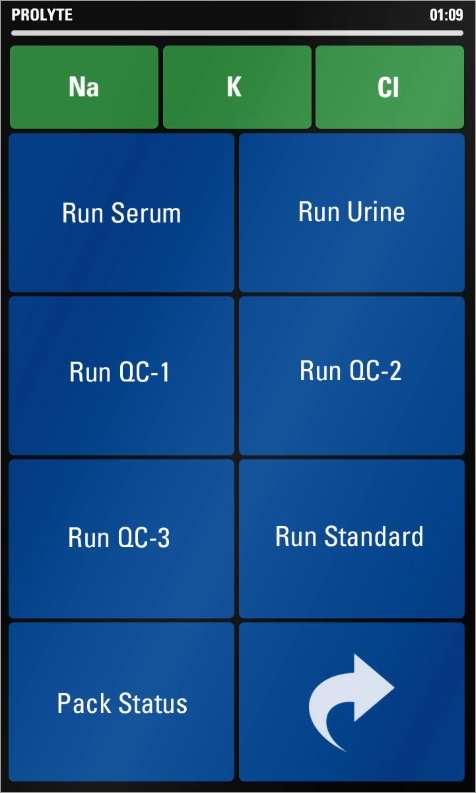

User Friendly Navigation

Easy Access to Data/Results

One Touch Calibration

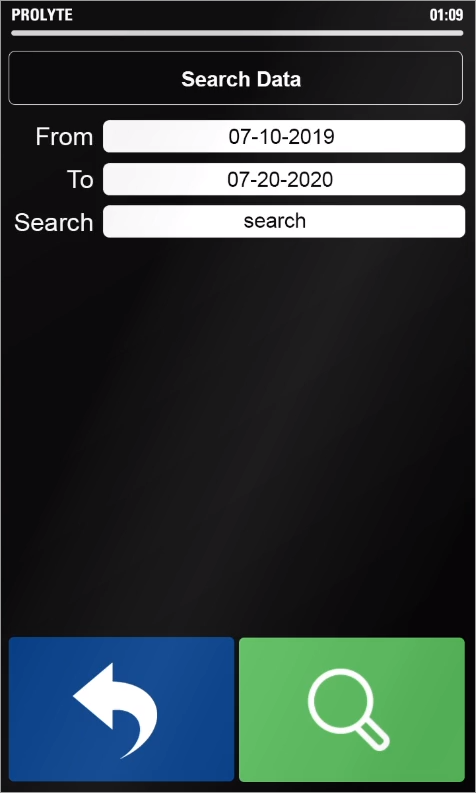

Simple Search Function

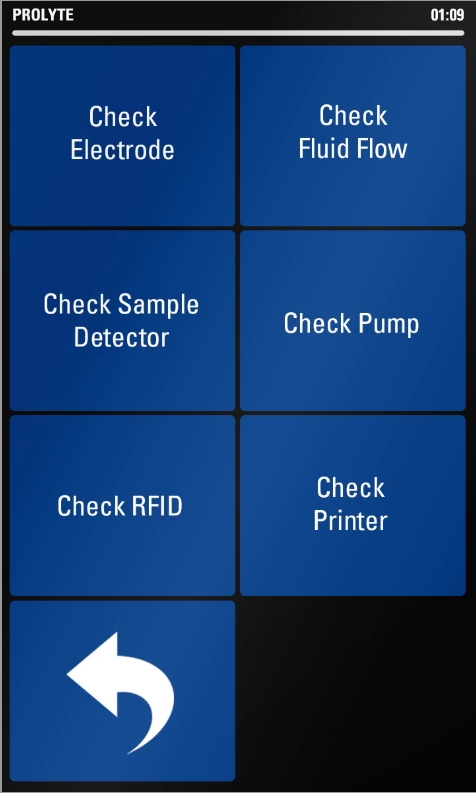

Onscreen System Diagnostics

Parameters and Specifications

Parameters

Range

Reproductibility

Resolution

Serum Na+
Serum K+
Serum CL-
Serum Li+
Urine** Na+
Urine** K+
Urine** CL-

40-205 mmol/L
1.5-15 mmol/L
45-205 mmol/L
0.15-5.00 mmol/L
30-1020 mmol/L
20-505 mmol/L
25-205 mmol/L***

CV ≤ 1% (120-160 mol/L)
CV ≤ 1.5% (2.5-6 mmol/L)
CV ≤ 1% (85-130 mmol/L)
SD ≤ 0.03 mmol/L (0.4-1.3 mmol/L)
CV ≤ 5% (100-250 mmol/L)
CV ≤ 5% (10-60 mmol/L)
CV ≤ 5% (100-250 mmol/L)

0.01 mmol/L
0.01 mmol/L
0.01 mmol/L
0.001 mmol/L
0.01 mmol/L
0.01 mmol/L
0.01 mmol/L

*Typical Within Run (n=30) Blood, Serum, Plasma
**Calcium and Lithium are not typically measured in urine samples
***(60-120) requires additional dilution

Power

100-240V ~ 50/60 Hz
(self adjusting)
1.6 A max, 50 Watts max

Size & Weight

9.5” (24cm) W x 16.5” (42cm)
14 lbs or 6 kgs

Ambient Conditions

Room temperature:
15-32°C/60-90°F
Humidity <85%
