The Most Advanced Electrolyte Analyzer

The Diamond Diagnostics SmartLyte® Plus Electrolyte Analyzer is a completely automated system measuring Na+, K+, Cl-, Ca++ and Li+ in whole blood, serum, plasma and urine utilizing Ion Selective Electrode (ISE) technology. The Diamond SmartLyte® Plus is uniquely designed with a powerful microprocessor allowing for easy interface with external LIS systems, operation with a new touch screen interface, bar code scanner and storage and retrieval of over 10,000 patient results. The system currently operates in over 12 languages and offers laboratories the option to utilize the analyzer for either human or veterinary applications.

Product features

Fastest Results • Large Storage Capacity • Advanced Functionality

User Input

5” Touch Screen
Remote Access

Analysis Time

28 sec (512/hour)

Calibration

2 Point every 4 hours
1 Point every sample
On Demand

Languages

English, 中文, Español,
Français, Deutsch,
Indonesia, Italian, 日本語,

Data Storage

10,000 Patient Results
10,000 QC Results per Level

Support

Online Service Interface

Sample Size

Whole Blood, Serum (95 µl)
Plasma, QCs (95 µl)
Urine (180 µl)

日本語, 한국어, Português,
Polskie, Русский, Türkçe

Connectivity

LAN, Wifi, 4 USB ports
RS232, LIS

Number of Parameters

5 Total 4 (Simultaneously)

Veterinary Options

Feline, Canine, Bovine,
Equine, Swine, Ovine,
Murine or Open

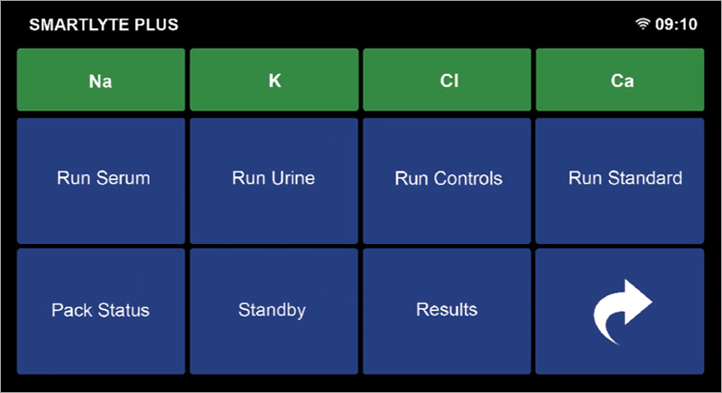

User Friendly Navigation

Extensive Onscreen Diagnostics

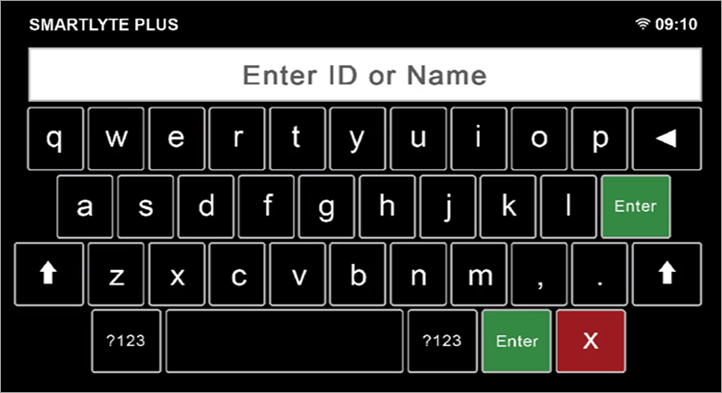

Simple Search Function

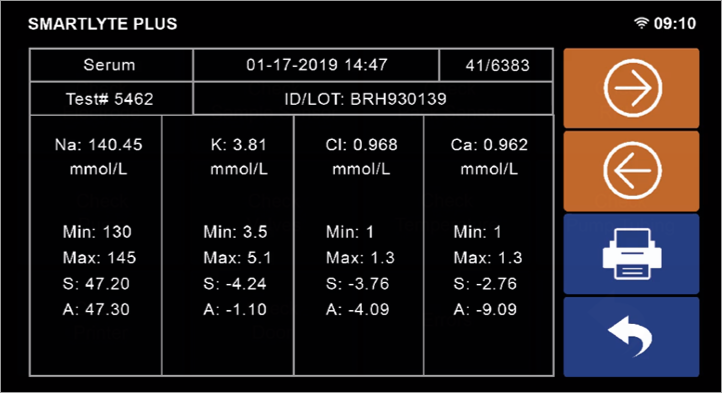

Easily Access Data and Results

Parameters and Specifications

Parameters

Range

Reproductibility

Resolution

Serum Na+
Serum K+
Serum CL-
Serum Ca++
Serum Li+
Urine** Na+
Urine** K+
Urine** CL-

40-200 mmol/L
1.7-15 mmol/L
50-200 mmol/L
0.3-5.0 mmol/L
0.2-5.5 mmol/L
3-300 mmol/L
5-120 mmol/L***
15-300 mmol/L

CV ≤ 1% (120-160 mol/L)
CV ≤ 1.5% (2.5-6 mmol/L)
CV ≤ 1% (85-130 mmol/L)
SD ≤ 0.02 mmol/L (0.8-1.5 mmol/L)
SD ≤ 0.03 mmol/L (0.4-1.3 mmol/L)
CV ≤ 5% (100-250 mmol/L)
CV ≤ 5% (100-250 mmol/L)
CV ≤ 5% (100-250 mmol/L)

0.1 mmol/L
0.01 mmol/L
0.1 mmol/L
0.001 mmol/L
0.001 mmol/L
0.1 mmol/L
0.01 mmol/L
0.1 mmol/L

*Typical Within Run (n=30) Blood, Serum, Plasma
**Calcium and Lithium are not typically measured in urine samples
***(60-120) requires additional dilution

Power

100-240V ~ 50/60 Hz
(self adjusting)
11.6 A max, 50 Watts max

Size & Weight

13.2 x 12.4 x 12 in
or 335 x 315 x 295 mm
14 lbs or 6 kgs

Ambient Conditions

Room temperature:
15-32°C/60-90°F
Humidity <85%
